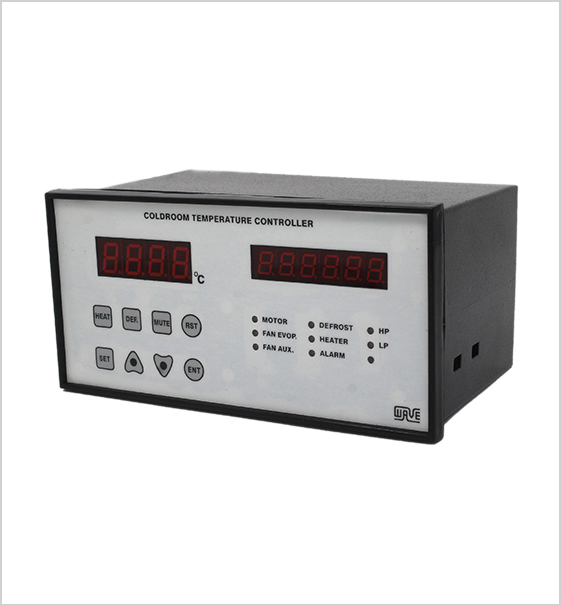

| CONTROLLER NAME | Model No & TYPE | WTC-192-COLD |
|---|---|---|
| SIZE | Dimention(HxWxD) mm | 96x192 |
| Panel Cutout (mm) | 92x188 | |
| DISPLAY | Upper Lower |
7 segment, 4 digit RED LED display 7 segment, 6 digit RED LED display |
| INPUT | Sensor & Range | Two PT-100 for cold room and auxiliary fan HP & LP phase input sensing |
| OUTPUT | Control Output Output Rating |
Phase Contact for motor, Phase contact for Fan Phase contact for Heater, Buzzer Output Phase Contact for Auxiliary fan 10A 1C/O, 2A, 220V AC 24V DC for Buzzer |
| Set Point | Set point for Compressor output with Delay Alarm output Hysteresis Defrost Cycle for compressor Heater & Fan delay Auxiliary fan temperature and Hysteresis |
| Operating Mode | Cooling control(Compressor) Heating Controller (Auxiliary Fan) |
| Resolution | 1-digit resolution available for PT-100 sensor only |
| Accuracy | ±1°C |
| Power Requirement | 220V AC, 50Hz |
| Protection | Relay turn off in case of sensor break or Fail |
| Indication | "OPEN" message display if sensor disconnected & alarm ON with led indication |
| Memory Backup | Selectable according to requirement |
