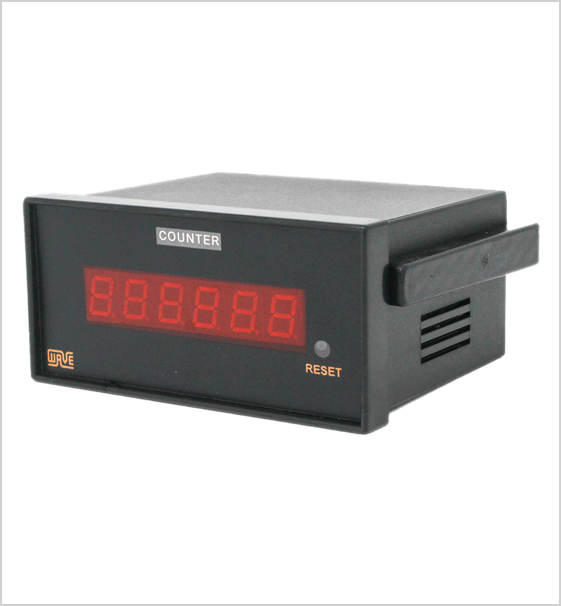

WCT-1XXX-6D-AR

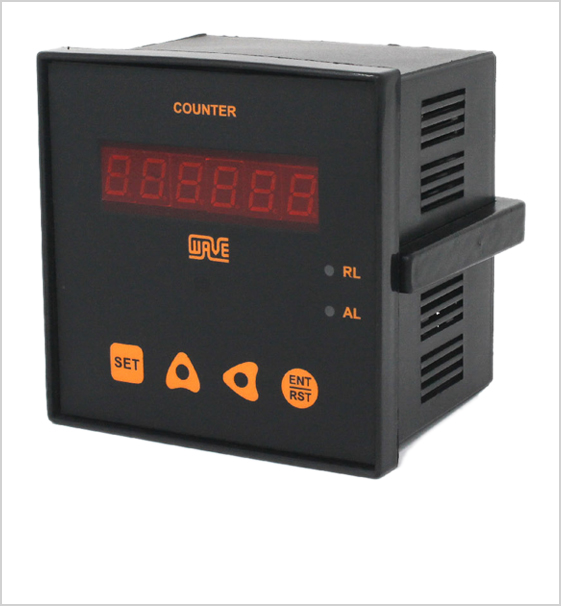

  • WCT-1201-6D-AR….Size: 96(w)x96(h)x65(d) mm
  • WCT-1101-6D-AR….Size: 72(w)x72(h)x80(d) mm
  • CONTROLLER NAME Model No & TYPE Digital counter auto reset
    SIZE Dimention(HxWxD) mm 96x96, 72x72, 48X48 ,96x48
    Panel Cutout (mm) 92x92, 68x68, 44x44, 92x44
    DISPLAY Upper
    Lower
    7 segment, 6 digit RED LED display
    7 segment, 4 digit RED LED display(optional)
    INPUT Input Signal
    Se points setting method
    Proximity switch (PNP /NPN), Micro switch ,230v AC pulse, Encoder
    Push switch
    OUTPUT Control Output
    Output Rating
    Relay Output
    1C/O, 2A, 230V AC
    Auto reset time setting 0.1 to 250.0 seconds
    Operating Mode Auto Reset mode
    Reset Facility Front & Back Both reset available for manual reset
    Count Setting Range 0 to 999999(6 digit) or 0 to 9999(4 digit)
    Element Setting 1 to 99(division fector)
    Count Selection Total count, Batch count
    Memory Backup Selecteble according to requirement
    Indication LED for relay status indication
    Power Supply 100-250V AC/DC 50/60 Hz
