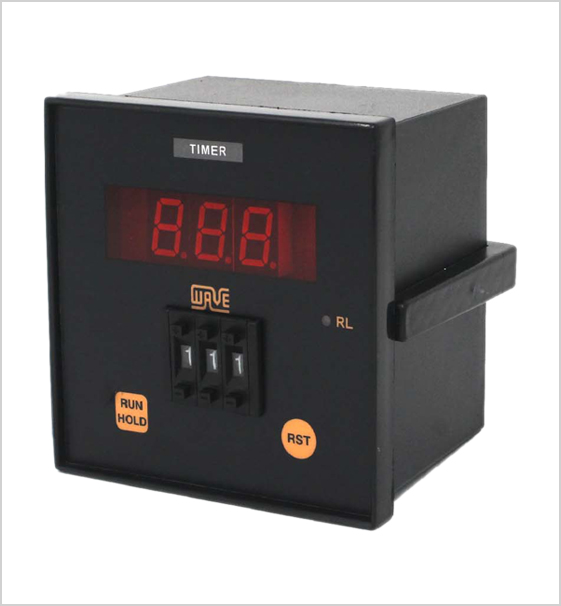

WTM-1201-3D

  • Size: 96(w)x96(h)x65(d) mm
  • CONTROLLER NAME Model No & TYPE WTM-1201
    SIZE Dimention(HxWxD) mm 96x96
    Panel Cutout (mm) 92x92
    DISPLAY Upper 7 segment, 2/3/4 digit RED LED display(Process Time)
    OUTPUT Control Output
    Output Rating
    Relay Output
    1C/O, 2A, 230V AC
    Resolution Decimal point, slection
    Operating Mode Manual reset mode
    Reset Facility Back reset available (optional)
    Time Setting Range 0 to 9999(min or Sec selectabel)(2,3,4 digit)
    Memory Backup Selecteble according to requirement
    Indication LED for relay status indication
    Power Supply 220V AC
