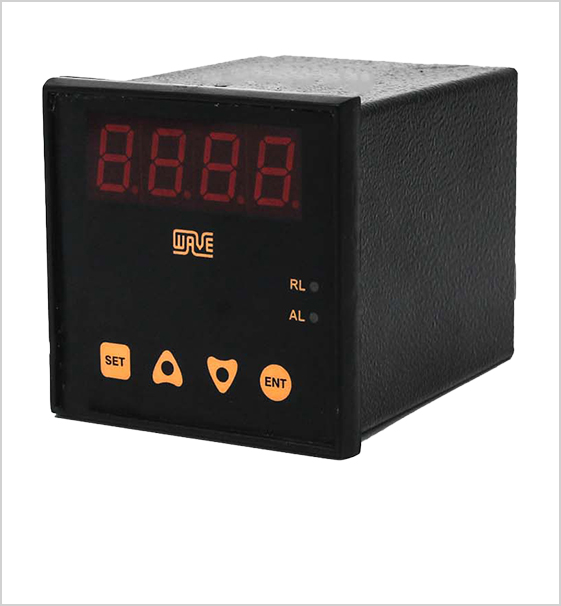

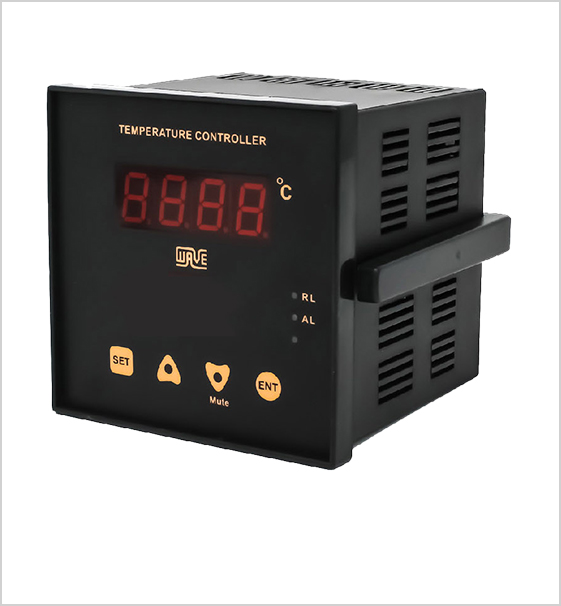

WTC-1XXX-PID

  • WTC-1201-PID….Size: 96(w)x96(h)x65(d) mm
  • WTC-1001-PID….Size: 96(w)x48(h)x110(d) mm
  • WTC-1101-PID….Size: 72(w)x72(h)x65(d) mm
  • WTC-1301-PID….Size: 48(w)x48(h)x85(d) mm
  • CONTROLLER NAME Model No & TYPE WTC-1XXX-PID
    SIZE Dimention(WxHxD) mm 96x96x65, 96x48x110, 72x72x65, 48x48x85
    Panel Cutout (mm) 92x92, 92x44, 68x68, 44x44
    DISPLAY Upper 7 segment, 4 digit RED LED display
    INPUT Sensor & Range PT-100 2w/3w      -50 To 400°C
    J-Type         0 To 400°C
    K-Type         0 To 1200°C
    OUTPUT Control Output


    Output Rating
    Relay or SSR Alarm contact, Alarm contact (optional)
    Current : 0 / 4 to 20mA DC (max load 500E)(optional)
    Voltage : 0 to 5 / 10V DC(min load 10K)(optional)

    1C/O, 2A, 230V AC
    12V DC for Buzzer (optional)
    Set Point set point for Temperature,
    Alarm and Timer hysteresis,
    compressor delay if cooing control select
    Operating Mode PID/ON-OFF
    Heat / Cool (for ON OFF CONTROL)
    Resolution 1-digit resolution available for PT-100 sensor only
    Accuracy ±0.5 °C
    Power Requirement 100-260V AC, 50Hz
    Protection Relay turn off in case of sensor break or Fail
    Indication "OPEN" message display if sensoor disconnected & alaram on with led indication
    Memory Backup selectable according to requirement
    Modbus communication RS-485 Output Optional
