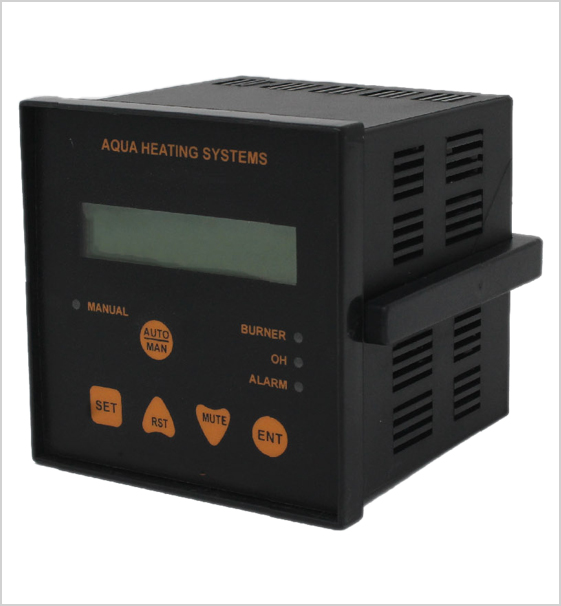

| CONTROLLER NAME | Model No & TYPE | WTC-1602-GAS |
|---|---|---|
| SIZE | Dimention(HxWxD) mm | 96x96 |
| Panel Cutout (mm) | 92x92 | |
| DISPLAY | LCD | 16x2 LCD display |
| INPUT | Sensor & Range | PT-100 2w/3w 0 To 100°C |
| OUTPUT | Control Output Output Rating |
1.Temperature control Relay 2.Alarm Output 1C/O, 2A, 230V AC 24V DC for Buzzer |
| RTC setting | DD/MM/YY(selectable) MM:HH (Selectable) |
| Set Point | set point for Temperature control, Over heat Temperature Hysteresis setting, 3 On time and 3 OFF time for burner as Per real time clock Burner Reset time |
| Operating Mode | Auto mode / Manual Mode (selection) Auto Mode: Burner ON OFF CONTROL as per Time and Temperature Manual Mode: Burner ON OFF as per Temperature |
| Accuracy | ±0.5°C |
| Power Requirement | 220V AC, 50Hz |
| Protection | Relay turn off in case of sensor break or Fail |
| Indication | "OPEN" message display if sensoor disconnected alaram on with led indication |
