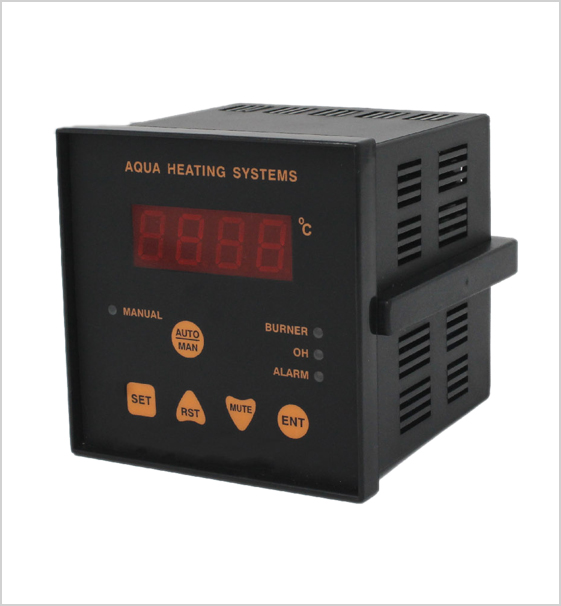

| CONTROLLER NAME | Model No & TYPE | WTC-1201-GAS |
|---|---|---|
| SIZE | Dimention(HxWxD) mm | 96x96 |
| Panel Cutout (mm) | 92x92 | |
| DISPLAY | Upper | 7 segment, 4 digit RED LED display |
| INPUT | Sensor & Range | PT-100 2w/3w 0 To 100°C |
| OUTPUT | Control Output Output Rating |
1.Temperature control Relay 2.Alarm Output 1C/O, 2A, 230V AC 12V DC for Buzzer |
| Set Point | set point for Temperature control, Hysteresis setting, On time setting Burner Reset time |
| Operating Mode | Manual Mode (selection) Manual Mode: Burner ON OFF as per Temperature |
| Accuracy | ±0.5°C |
| Power Requirement | 220V AC, 50Hz |
| Protection | Relay turn off in case of sensor break or Fail |
| Indication | "OPEN" message display if sensoor disconnected alaram on with led indication |
