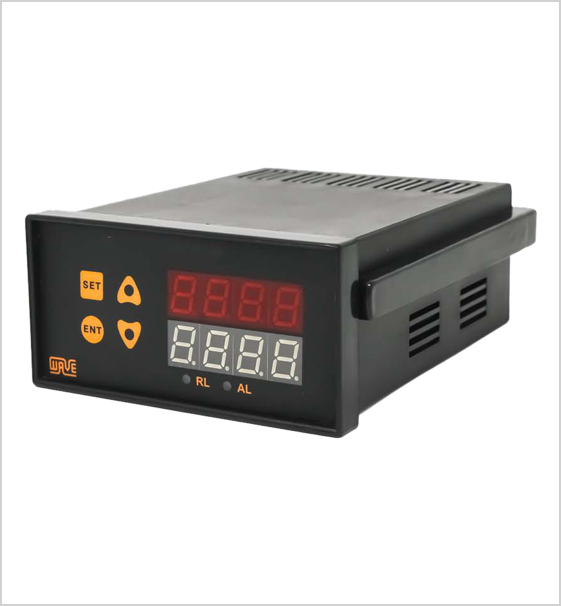

| CONTROLLER NAME | Model No & TYPE | WHUC-2XXX-PID |
|---|---|---|
| SIZE | Dimention(HxWxD) mm | 96x96, 72x72, 48X48, 48x96 |
| Panel Cutout (mm) | 92x92, 68x68, 44x44, 44x92 | |
| DISPLAY | Upper Lower |
7 segment, 4 digit RED LED display 7 segment, 4 digit RED LED display |
| INPUT | Sensor Range |
Humidity Input: 3.3V / 5V / 10V or 4-20mA, Temprature input PT-100, water level Input (NC)
Humidity sensor Range (10 to 90%) RH , Temp Range 0 to 100°C |
| OUTPUT | Control Output & Control Mode Relay Rating |
Output: 1 Dry Heater SSR / Relay Output: 2 Wet Heater SSR / Reay Output: 3 Cooling SSR / Relay Output: 4 Alarm output (optional) 1C/O, 2A, 230V AC, 24 VDC Alarm BUZZER |
| Set Point | %rH, Dry & Cool cooling control with delay Defrost Cycle for cooling control Band selection Timer (Optional) Alarm (Optional) |
| Operating Mode | Temperature and Humidity control |
| Operating Mode | Temperature and Humidity control |
| Accuracy | ±1 RH and temp |
| Power Requirement | 100-260 V AC, 50Hz |
| Protection | Relay turn off in case of sensor break or open |
| Alarm Function Mode | Band selection mode (Alarm function work according to selection) |
| Indication | "OPEN" message display if sensoor disconnected & alaram on with led indication |
| Memory Backup | Selectable according to requirement |
| Modbus Communication | Available As per requirement |
