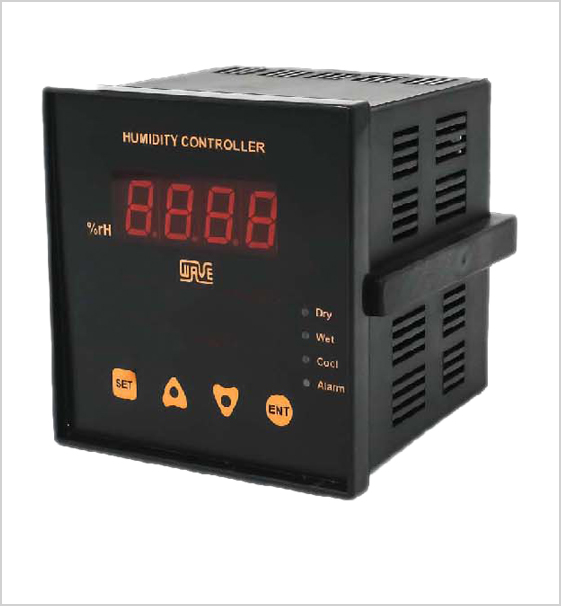

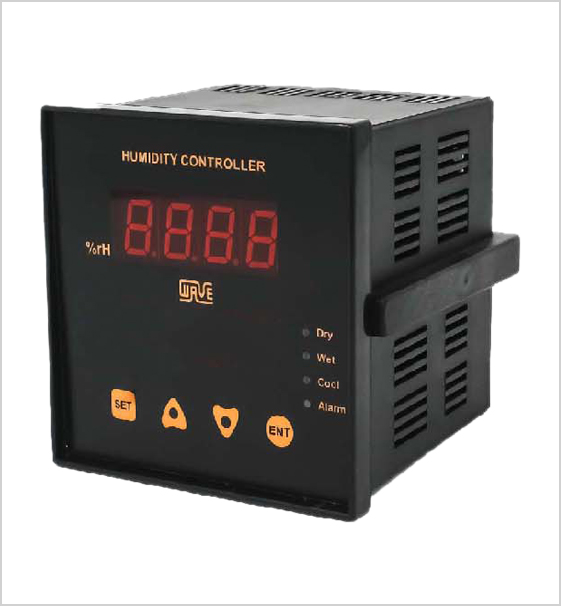

| CONTROLLER NAME | Model No & TYPE | WHUC-1XXX-OFF |
|---|---|---|
| SIZE | Dimention(HxWxD) mm | 96x96, 72x72, 48X48, 48x96 |
| Panel Cutout (mm) | 92x92, 68x68, 42x42, 42x92 | |
| DISPLAY | Upper | 7 segment, 4 digit RED LED display |
| INPUT | Sensor Range |
4 to 20mA or 3.3v Humidity Sensor (oprating range 0 to 60°C) Humidity sensor Range (10 to 90%) RH |
| OUTPUT | Control Output & Control Mode
Relay Rating |
Output 1 : Relay Output ,humidifier or Dehumidifier, Output: 2 Alarm for Humidity
1C/O, 2A, 230V AC, 24vdc buzzer (optional) |
| Set Point | Set point for Humidity and Alarm |
| Operating Mode | HUMIDIFIER / DEHUMIDIFIER (Humidity Control) |
| Accuracy | ±1 RH |
| Power Requirement | 100-260V AC, 50Hz |
| Temperature Range | 0 to 60 °C |
| Protection | Relay turn off in case of sensor break or open |
| Alarm function Mode | Deviation mode Or Band selection mode (Alarm function work according to selection) |
| Indication | "OPEN" message display if sensoor disconnected & alaram on with led indication |
| Memory Backup | Selectable according to requirement |
