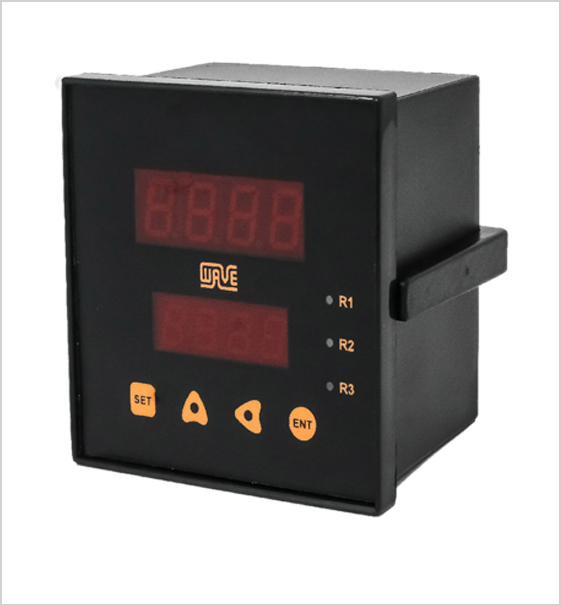

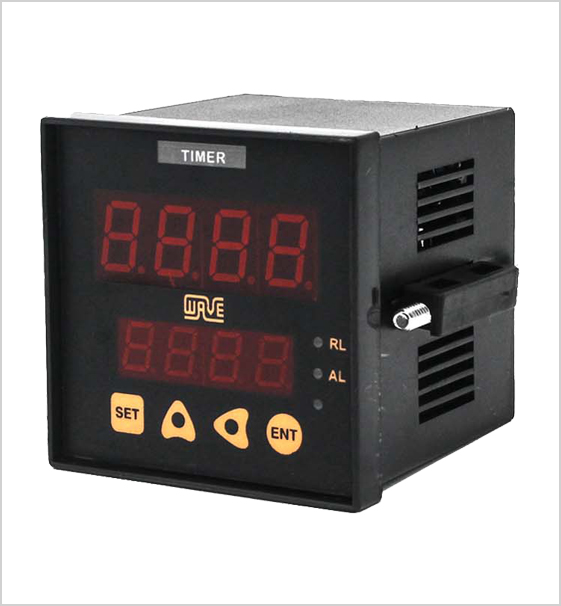

| CONTROLLER NAME | Model No & TYPE | WTM-2XXX-MR |
|---|---|---|
| SIZE | Dimention(HxWxD) mm | 96x96, 72x72, 48X48, 48x96 |
| Panel Cutout (mm) | 92x92, 68x68, 44x44, 44x92 | |
| DISPLAY | Upper Lower |
7 segment ,4 digit RED LED display(Process Time)
7 segment, 4 digit RED LED display(Set Time) |
| OUTPUT | Control Output Output Rating |
Relay Output(Delay on / Delay off)
1C/O, 2A, 230V AC |
| Resolution | With or without decimal point, slection |
| Operating Mode | Sequential Mode |
| Reset Facility | Front & Back Both reset available(optional), manual reset |
| Time Setting Range | 1 to 9999(min or hour or selectabel) |
| Counting Direction | Up / Down (Configurable) |
| Memory Backup | Selecteble according to requirement |
| Indication | LED for relay status indication |
| Power Supply | 220V AC |
