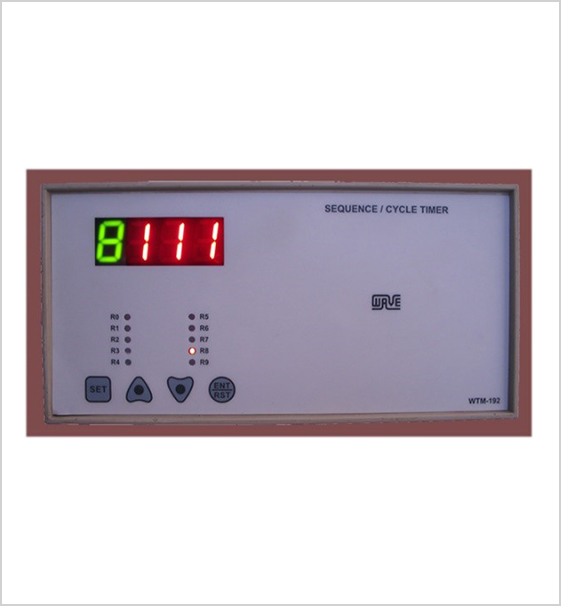

| CONTROLLER NAME | Model No & TYPE | Sequential timer WTM-192-SEQ |
|---|---|---|
| SIZE | Dimention(HxWxD) mm | 192x96 |
| Panel Cutout (mm) | 188x92 | |
| DISPLAY | Single Display | 1 Digit (Green)+3 Digit (Red) Green for output number Red Display for count Down time |
| Operating Mode | Cycle or sequence mode selection |
| Memory | Power down memory selectiion |
| On & Off time unit selection | Second / Minute |
| On & Off time resolution selection | (No=1 or Yes=0.1) |
| No of Output selection | 1 to 10 settable |
| Start selection | (Yes=Enable/No=Disable) |
| ON time and OFF time setting range | 1 to 999 Second or Minute adjustable in set mode |
| Indication | 10 LED indication for output |
| Power Supply | 100-250V DC 50/60 Hz |
