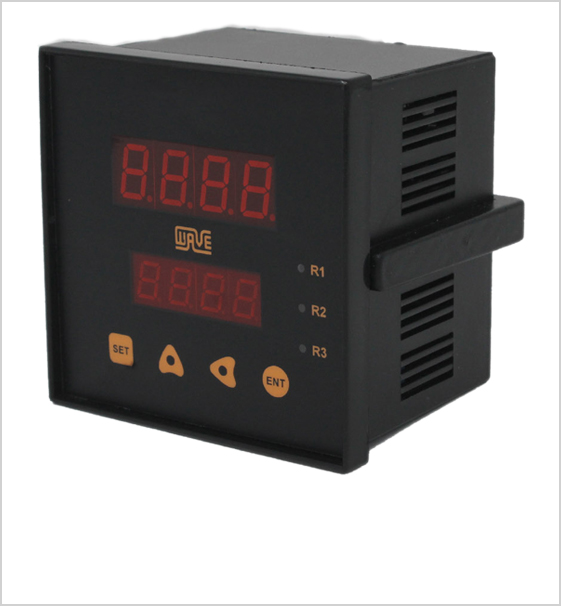

| CONTROLLER NAME | Model No & TYPE | WTC-2XXX-CH |
|---|---|---|
| SIZE | Dimention(HxWxD) mm | 96x96 |
| Panel Cutout (mm) | 92x92 | |
| DISPLAY | Upper Lower |
7 segment, 3 digit RED LED display 7 segment, 3 digit RED LED display(optional) |
| INPUT | Sensor & Range | Two NTC Thermistor input for Cool water and Anti Freeze Range 0 to 50 °C HP & LP Switch input Water flow swich input |
| OUTPUT | Control Output Output Rating |
Potential free C/No Compressor Relay Output Potential free C/No Pump Relay output 1C/O, 2A, 230V AC 24V DC for Buzzer |
| Set Point | Chiller Temperature & hysteresis, Anti -Freeze temperature & hysteresis Chiller compressor time delay, Pump on & off Cycle time Chiller temperature range lock selection |
| Operating Mode | ON/OFF control |
| Accuracy | ±1 °C |
| Power Requirement | 100 - 260V AC |
| Protection | Relay turn off in case of sensor break or Fail |
| Indication | Chiller sensor fail, Anti freeze Sensor fail HP & LP indication, FLS indication for water flow |
| Memory Backup | Selectable according to requirement |
