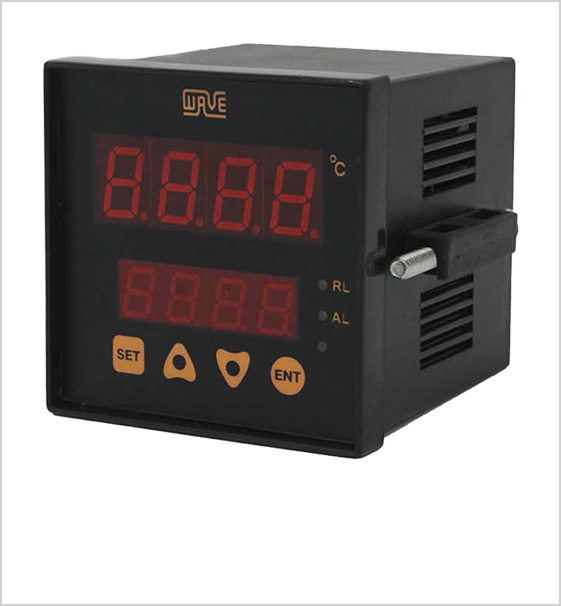

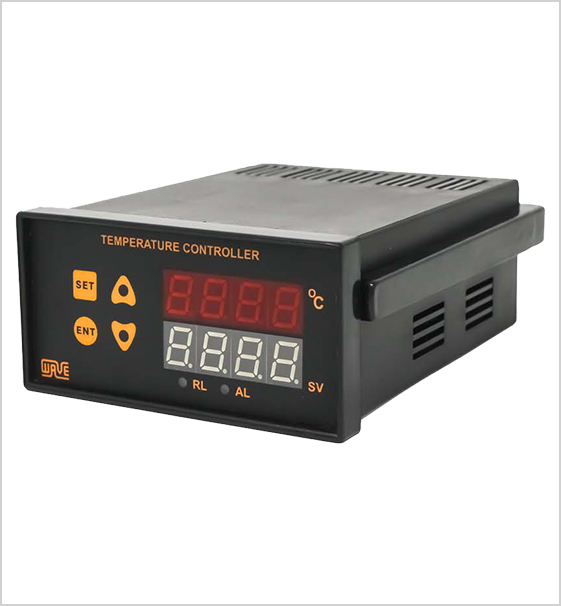

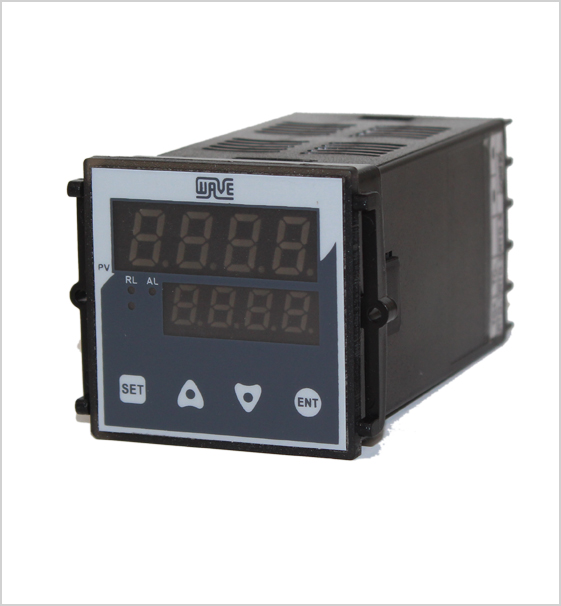

| CONTROLLER NAME | Model No & TYPE | WTC-2XXX-BL |
|---|---|---|
| SIZE | Dimention(HxWxD) mm | 96x96, 48x96, 72x72, 48x48 |
| Panel Cutout (mm) | 92x92, 68x68, 44x44 | |
| DISPLAY | Upper Lower |
7 segment, 4 digit RED LED display 7 segment, 4 digit RED LED display |
| INPUT | Sensor & Range | PT-100 2w/3w -50 To 400°C J-Type 0 To 400°C K-Type 0 To 1200°C |
| OUTPUT | Control Output Output Rating |
Relay or SSR for heater control Relay or SSR contact for Blower control 1C/O, 2A, 230V AC |
| Set Point | set point for Temperature, Blower control hysteresis, compressor delay if cooing control select |
| Operating Mode | PID/ON-OFF(for Heater) |
| Resolution | 1-digit resolution available for PT-100 sensor only |
| Accuracy | ±0.5°C |
| Power Requirement | 100 - 260V AC, 50Hz |
| Protection | Relay turn off in case of sensor break or Fail |
| Indication | "OPEN" message display if sensor disconnected & alarm ON with led indication |
| Memory Backup | selectable according to requirement |
